Anyang ST

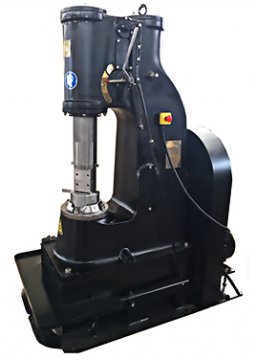

Anyang ST 25 kg Pneumatic Power Hammer

Regular price $9,550.00 $0.00 Unit price per
Shipping calculated at checkout.

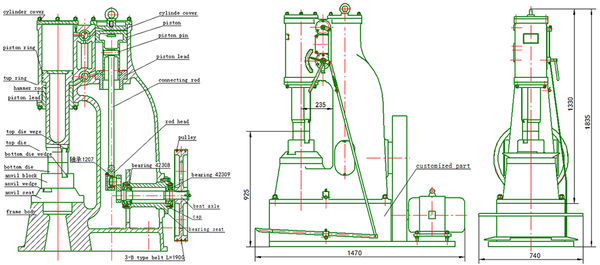

Anyang ST-25 forging power hammer is a forging device with two cylinders integrated. The compression cylinder is located behind the equipment. It compresses the air and sends it to the working cylinder through the distribution valve. The working cylinder is located in front of the equipment. The hammer rod in the working cylinder drives the hammer head to hammer up and down.
In order to provide customers with high-quality forging power hammer, after years of hard work and trials in several forging factories, our company's technology research and development team has finally developed a ST-25 forging power hammer that is well received by customers. All enquires are welcomed.

Shipping fees to be determined then added to total. Carrier truck freight.

Main specification

MODEL ST-25
RATED WEIGHT OF TUP 25KG - 55lbs
BLOW ENERGY 0.27KJ
NO OF BLOWS PER MIN 250
WORKING HEIGHT 240MM
DISTANCE FROM HAMMER TO ROD 235MM
MAX SQUARE WORKED (M.S) 40MM×40MM
MAX DIA WORKED (M.S) Φ48MM
MOTOR MODEL Y132S1-6
MOTOR POWER 3KW
TOTAL WEIGHT 1100KG - 2420lbs
OVERALL LENGTH 1280MM - 50.4"
OVERALL WIDTH 720MM - 28.4"
OVERALL HEIGHT 1835MM - 72.25"

.
