Anyang ST

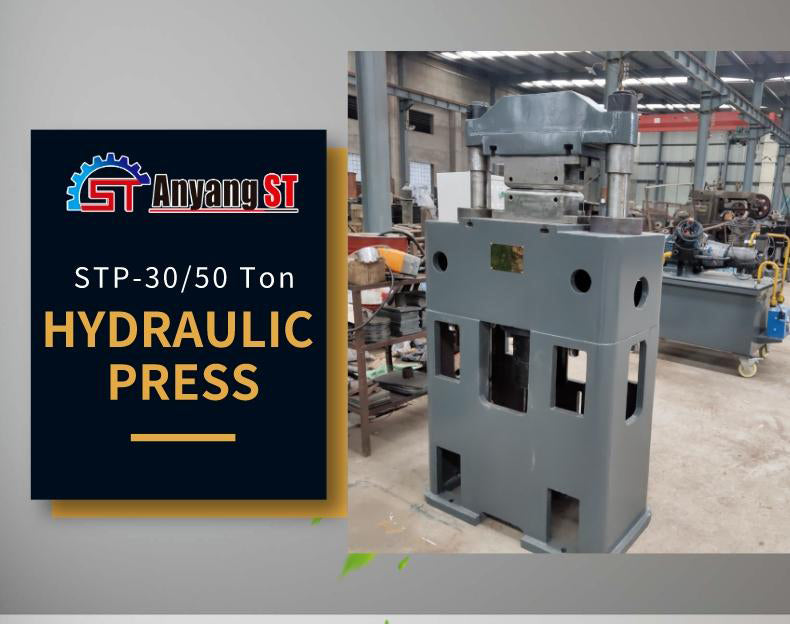

Anyang ST STP 30-ton Hydraulic Press
Regular price
$14,450.00
Shipping calculated at checkout.
Anyang ST STP-30-ton Hydraulic Press.
*Note: Shipping and insurance is added after invoice is provided with freight quote. Our system does not allow for accurate freight cost to be generated at this time.
Price reflects new tariffs as of 04/06/2025
Shipping fees to be determined then added to total. Carrier truck freight.
Contact us for total cost.
| Specifications of press. | STP 30 | |
| Nominal Pressure (KN) | 300 | |
| Oil Pressure (MaP) | 25 | |
| Stroke (mm) (in) | 210 mm - 8.26" | |
| Down Speed (MM/S) | 55 mm | |
| Forging Speed (MM/S) | 10 mm | |
| Return Speed (MM/S) | 105 mm | |
| Working Area (H x W) | 210 x 250 mm | |
| Die Table (L x W mm) | 330 x 250 | |
| Height of working surface (mm) - (in) | " | 915 mm - 36" |
| Hydraulic Oil (L) | 240 L | |
| Hydraulic Oil | HM-46 | |
| Motor 3 Phase (KW) | 5.5 | |
| Overall Dimensions (LxWxH) | 550 x 700 x 1400 | |
| Total Weight Dry (KG) | 1500 | |
|
Electrical Common factory motor windings |
|
A properly sized VFD converter 240V single-phase
230V 3-phase, 60 Hz – most popular in small/medium US shops
460/480V 3-phase, 60 Hz – best for larger shops/industrial panels (lower amps)
(208V 3-phase is possible in the US but check nameplate/FLA carefully.)
|
| Price USD | $14,450.00 |
Single-phase shops (no 3-phase on site)
VFD/phase-converter route: A properly sized VFD can convert 240V single-phase → 240V 3-phase for the pump motor. Choose an industrial VFD rated for single-phase input and sized with headroom (often 1.5–2× the motor HP).
A rotary phase converter (RPC) also works; size ≥1.5× the motor HP and use a soft-start/VFD downstream if you want gentler starts and quieter operation.
Expect higher input current on single-phase; plan your breaker/wire accordingly.
------------------------------------------------------------------------------------------------
Control & enclosure
Low-voltage control circuit is typically 24V (DC) with an IEC/NEMA enclosure on the machine.
E-stop, foot pedal, jog, and pressure/tonnage controls come through the control panel; VFDs (if used) are usually panel-mounted with proper cooling/derating.
------------------------------------------------------------------------------------------------
Rough electrical planning (rule-of-thumb)
(Exact HP/FLA can vary by build; check your nameplate before finalizing wire/breaker sizes.)
For a ~5-7.5 HP 45–5.5 kW) pump motor typical of a 30-ton class press:
230V 3-phase: ~20–30 A FLA → commonly a 14-22 A FLA commonly 30 - 40-amp breaker, #10–#8 AWG Cu run length-dependent
460V 3-phase: ~7–11 A FLA → commonly a 25–30 A breaker, #12–#10 AWG Cu
If using a VFD, follow the VFD maker’s input protection and motor cable specs (EMC-rated cable, bonding, and proper grounding).
------------------------------------------------------------------------------------------------
Frequency considerations
60 Hz is standard in North America. Running a 50 Hz motor/pump reduces pump speed/flow (~17%), affecting cycle time. Order the correct 60 Hz winding for US shops.
------------------------------------------------------------------------------------------------
Plug vs. hardwire
These presses are typically hardwired to a local disconnect (no plug). Add a lockable fused disconnect within sight of the machine.
